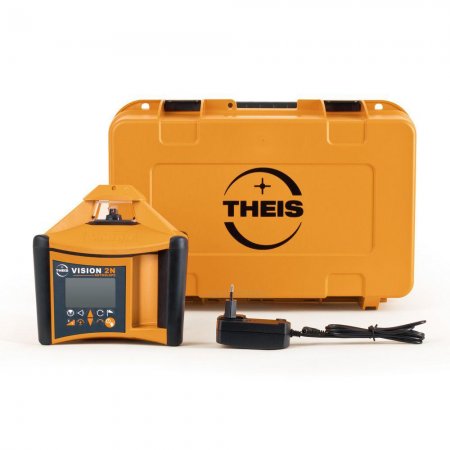

VISION 2N AUTOSLOPE(THEIS)
Technical Specifications:
-Dual grade slope +/- 15 % with adjustment (Autoslope)
-TILT in levelling and grade
-Storage of last slope values
-Range up to 750 m (radius)
-Illuminated LCD display
-Masking function of the laser beam
-Manual slope
SPECIFICATION
|
Laser Class/High Power (option)
|
2/3R
|
|
Wave length
|
635 nm
|
|
Output/High Power (option)
|
< 1 mW/< 5 mW
|
|
Range (radius)/High Power (option)
|
ca. 300/750 m
|
|
Horizontal/Vertical
|
✓ / –
|
|
Self-levelling range
|
± 5°
|
|
Levelling accuracy
|
± 1,5 mm/30 m
|
|
Grade range x,y
|
± 15 %
|
|
Grade compensation
|
✓
|
|
Grade accuracy
|
± 0,025 %
|
|
Align function, horizontal/vertical *
|
–
|
|
Speed step by step mode (rpm)
|
0 – 1000
|
|
Scan-function
|
10° – 80°
|
|
Partial mask mode
|
✓
|
|
Windy function
|
✓
|
|
Display lighted
|
✓
|
|
Power source
|
NiMH+ or Alkaline “D“ cells
|
|
Running time (accu/battery)
|
≈ 70 h / 120 h
|
|
Charging time
|
≈ 6 h
|
|
Operating temperature
|
-15 ... +50 °C
|
|
System of protection
|
IP 67
|
|
Weight
|
≈ 3 kg
|
|
* in connection with TE 90 Align
|
|
